Specialized CO2 Cartridge Manufacturer
Fairdale has manufactured miniature CO₂ cartridges since 2010, supplying multiple cartridge capacities for shooting, beverage, inflation, life-jacket and other commercial applications.
English
24g co2 cartridge
Fairdale
Inflatable Life Jacket
24g
≥34cc
25.6mm
Approx. 108mm
97g
5.5 MPa
50000pcs
Product Overview

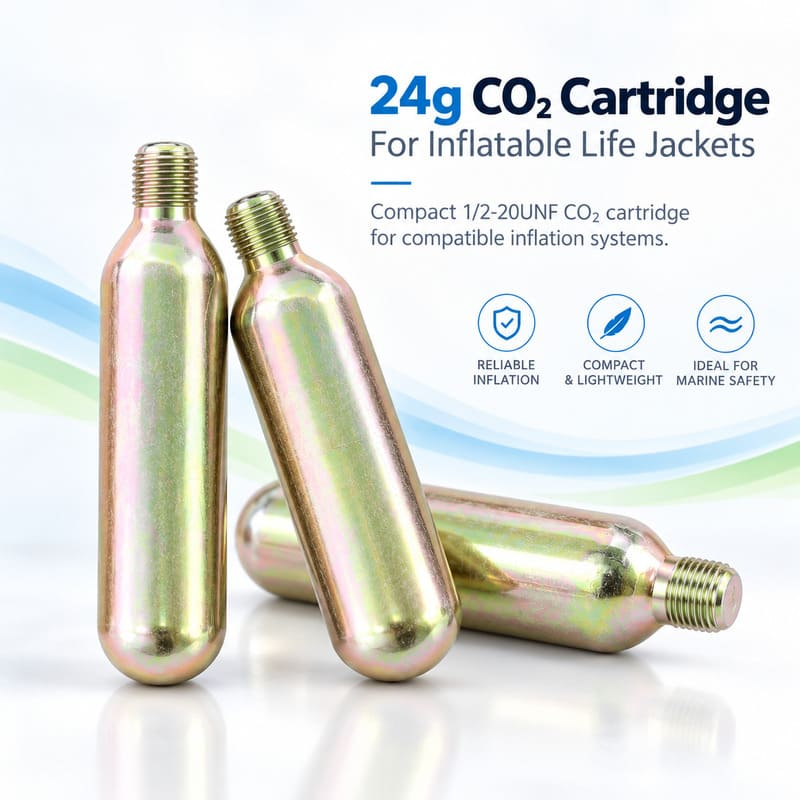

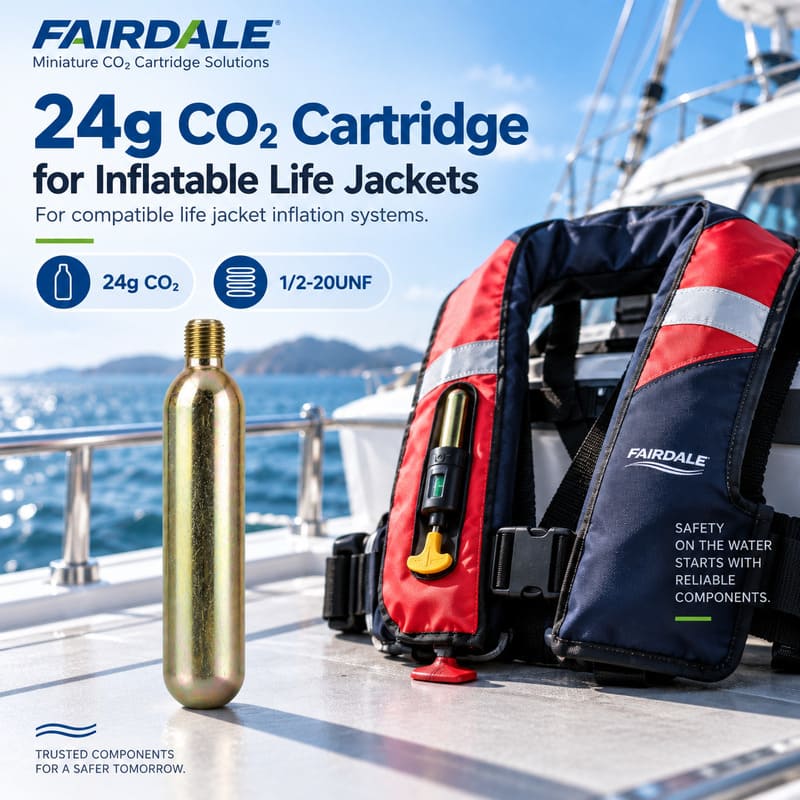

Fairdale manufactures 24g CO₂ cartridges for compatible inflatable life jackets and life-jacket inflation systems. The standard 24g version has a nominal 24g CO₂ fill, minimum 34cc water capacity, 25.6mm outside diameter, approximate 108mm length, approximate 97g total weight, and uses a 1/2-20UNF threaded connection.
This cartridge format is intended for life-jacket applications where the inflation system is designed around a 24g, 1/2-20UNF CO₂ cartridge. Fairdale’s internal product notes also identify the 24g life-jacket version as a single-use cartridge.
For commercial sourcing projects, Fairdale supports multiple miniature CO₂ cartridge capacities and accepts customization requirements across its product range.
The standard cartridge contains a nominal 24g CO₂ fill with a minimum water capacity of 34cc, providing a compact life-jacket cartridge format for compatible inflation systems.

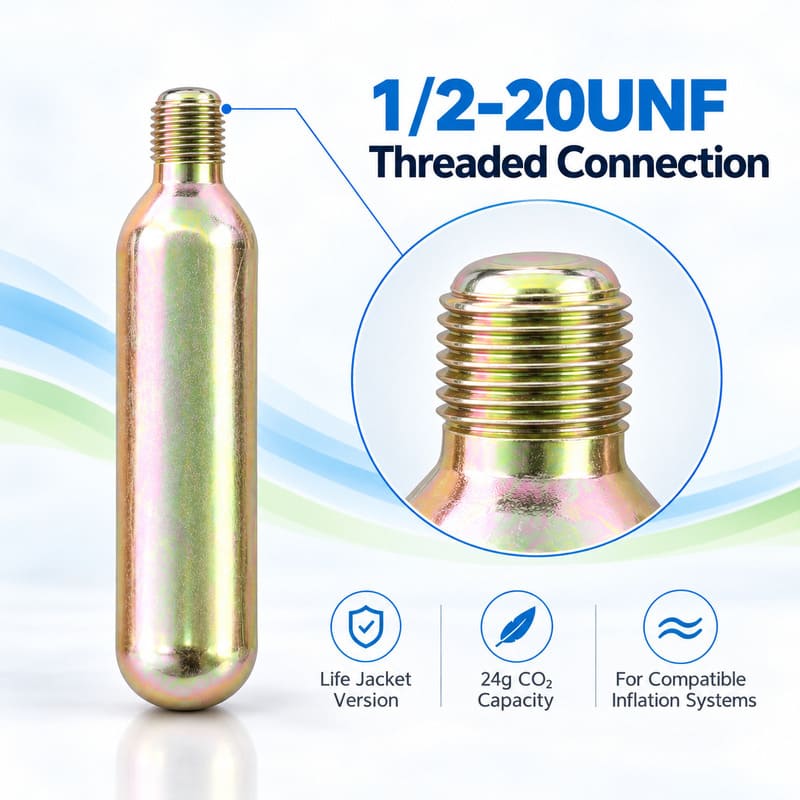

The standard 24g life-jacket cartridge uses a 1/2-20UNF threaded connection. Buyers should confirm the required thread, cartridge dimensions and CO₂ capacity against the intended inflation mechanism before ordering.
Fairdale’s catalog identifies the 24g and 33g cartridge series as mainly serving inflatable life-jacket applications.
Fairdale’s internal product information identifies the 24g 1/2-20UNF life-jacket cartridge as single-use.
Source 24g CO₂ cartridges for compatible inflatable life jackets from an experienced miniature CO₂ cartridge manufacturer, with defined 1/2-20UNF specifications and commercial sourcing support.
Fairdale has manufactured miniature CO₂ cartridges since 2010, supplying multiple cartridge capacities for shooting, beverage, inflation, life-jacket and other commercial applications.
The standard 24g 1/2-20UNF cartridge is designed for compatible inflatable life jackets and life-jacket inflation systems requiring this cartridge format.

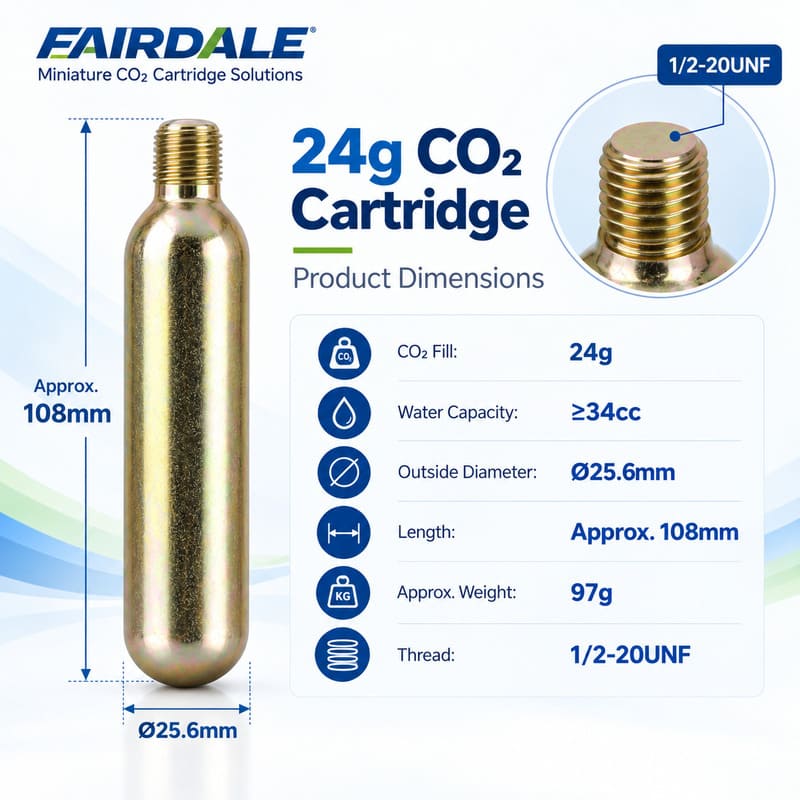

The standard life-jacket version combines a 24g CO₂ fill, minimum 34cc water capacity, Ø25.6mm diameter and an approximate length of 108mm.
Fairdale's standard 24g life-jacket cartridge uses a 1/2-20UNF threaded connection. Buyers should confirm compatibility with the intended inflation mechanism before placing an order.
Fairdale accepts customization requirements across its miniature CO₂ cartridge range. Buyers can submit application, quantity, packaging and project requirements for commercial evaluation.
Fairdale supplies multiple CO₂ cartridge capacities for compatible life-jacket applications, including standard 24g and 33g 1/2-20UNF formats for different equipment requirements.
Specifications
Fairdale's standard 24g CO₂ cartridge for compatible inflatable life jackets features a 24g nominal CO₂ fill, minimum 34cc water capacity and a 1/2-20UNF threaded connection.
| Product | 24g CO₂ Cartridge |
|---|---|
| Gas Type | Carbon Dioxide (CO₂) |
| CO₂ Fill Weight | 24g |
| Water Capacity | ≥34cc |
| Outside Diameter | 25.6mm |
| Length | Approx. 108mm |
| Approx. Total Weight | 97g |
| Internal Pressure | 5.5 MPa |
| Minimum Burst Pressure | 54–56 MPa |
| Thread | 1/2-20UNF |
| Usage | Single-Use |
| Main Application | Inflatable Life Jacket |
| MOQ | 50,000 PCS |

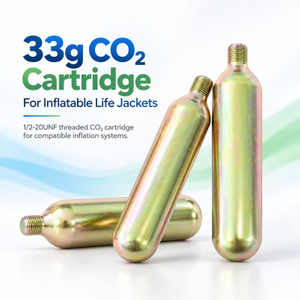

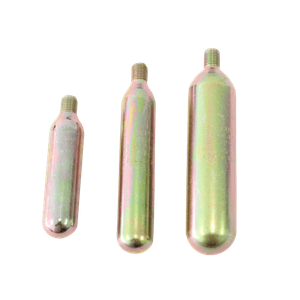

Fairdale supplies both 24g and 33g CO₂ cartridges for compatible inflatable life-jacket applications. Both standard versions use a 1/2-20UNF threaded connection, but differ in CO₂ capacity, dimensions and cartridge weight.
| Specification | 24g CO₂ Cartridge | 33g CO₂ Cartridge |
|---|---|---|
| CO₂ Fill | 24g | 33g |
| Minimum Water Capacity | 34cc | 45cc |
| Outside Diameter | 25.6mm | 26mm |
| Approx. Length | 108mm | 138.5mm |
| Approx. Weight | 97g | 145g |
| Internal Pressure | 5.5 MPa | 5.5 MPa |
| Minimum Burst Pressure | 54–56 MPa | 54–56 MPa |
| Thread | 1/2-20UNF | 1/2-20UNF |
| Main Application | Inflatable Life Jacket | Inflatable Life Jacket |
| Usage | Single-Use | Single-Use |
| MOQ | 50,000 PCS | 50,000 PCS |
Select the cartridge according to the CO₂ capacity, dimensions and cartridge specification required by your compatible life-jacket inflation system.
Choose the 24g format when your compatible life-jacket inflation system specifically requires a 24g CO₂ cartridge.
Choose the 33g format when the compatible inflation system specifies the larger 33g cartridge configuration.
Both the standard 24g and 33g life-jacket cartridges use a 1/2-20UNF threaded connection, but their CO₂ capacities, overall lengths and cartridge weights are different.
Use the cartridge capacity and dimensions specified for the intended inflation system. Do not substitute a 33g cartridge for a 24g cartridge, or vice versa, based only on thread type.
Applications
Fairdale's standard 24g CO₂ cartridge with a 1/2-20UNF threaded connection is designed for compatible inflatable life jackets and life-jacket inflation systems requiring this cartridge format.
Fairdale's standard 24g life-jacket cartridge contains a nominal 24g CO₂ fill and uses a 1/2-20UNF threaded connection for compatible inflatable life jackets designed around this cartridge specification.
The 24g cartridge can be supplied for compatible life-jacket inflation systems that specify a 24g CO₂ capacity and 1/2-20UNF threaded cartridge connection.
CO₂ capacity, thread type and cartridge dimensions should be confirmed against the intended inflation system before ordering.
With an outside diameter of approximately 25.6mm and an approximate overall length of 108mm, the 24g cartridge provides a smaller life-jacket cartridge format than Fairdale's 33g version.
The correct cartridge should be selected according to the dimensions and CO₂ capacity required by the compatible equipment.
Fairdale supports commercial sourcing and customization requirements for 24g CO₂ cartridge projects. Buyers can submit their application, cartridge specification, quantity and packaging requirements for evaluation.
Life-jacket CO₂ cartridges should be selected according to the specification required by the compatible inflation system. Confirm CO₂ capacity, thread type and overall cartridge dimensions before placing a bulk order.
Fairdale's standard 24g and 33g life-jacket cartridges both use a 1/2-20UNF thread, but they have different CO₂ capacities, dimensions and total weights. The same thread specification does not mean the two cartridge sizes are automatically interchangeable.
OEM, Packaging & Quality
Fairdale supplies 24g CO₂ cartridges for compatible inflatable life-jacket projects and commercial sourcing requirements. The standard life-jacket version features a 24g nominal CO₂ fill and a 1/2-20UNF threaded connection.
Fairdale accepts customization requirements for commercial miniature CO₂ cartridge projects. Buyers can submit their target application, cartridge specification, order quantity and packaging requirements for evaluation.
The standard cartridge combines a 24g CO₂ fill, minimum 34cc water capacity, 25.6mm outside diameter and an approximate overall length of 108mm.
Fairdale's standard 24g life-jacket cartridge uses a 1/2-20UNF threaded connection. Buyers should confirm cartridge and thread compatibility with the intended inflation mechanism before ordering.
Packaging requirements can be reviewed according to the buyer's project, order quantity and destination market. Provide your required packing method or packaging specification when requesting a quotation.
Buyers with branding or private-label requirements can submit their artwork, packaging specification, target market and project details for commercial evaluation.
Fairdale supplies 24g CO₂ cartridges for B2B sourcing, distribution and OEM projects with a standard minimum order quantity of 50,000 PCS.
Providing the following information helps us review your 24g CO₂ cartridge project and commercial requirements.
The standard 24g life-jacket cartridge is defined by specific filling, dimensional, threaded connection and pressure parameters. These specifications provide the basis for product verification and commercial project evaluation.
The standard 24g configuration is defined by its CO₂ capacity, water capacity, dimensions, approximate total weight and 1/2-20UNF threaded connection.
The standard cartridge has a nominal 24g CO₂ fill with a minimum water capacity of 34cc.
Key standard dimensions include an outside diameter of 25.6mm and an approximate overall length of 108mm.
The standard life-jacket cartridge uses a 1/2-20UNF threaded connection. Thread compatibility should be confirmed against the intended inflation mechanism before commercial ordering.
The documented 24g cartridge specification lists an internal pressure of 5.5 MPa and a minimum burst pressure of 54–56 MPa.
Buyer requirements including application, cartridge format, quantity, packaging and destination market can be reviewed before proceeding with a commercial project.
FAQ
Find answers to common questions about Fairdale 24g CO₂ cartridges for compatible inflatable life jackets, including dimensions, 1/2-20UNF thread specifications, usage, bulk supply and OEM sourcing.
A 24g CO₂ cartridge is a compact pressurized carbon dioxide cylinder containing a nominal 24 grams of CO₂. Fairdale's standard life-jacket version uses a 1/2-20UNF threaded connection and is intended for compatible inflatable life-jacket inflation systems.
The standard 24g life-jacket cartridge has:
Fairdale's standard 24g life-jacket cartridge uses a 1/2-20UNF threaded connection.
Buyers should confirm that this thread specification matches the intended inflation mechanism before ordering.
Fairdale's standard 24g 1/2-20UNF version is mainly used for compatible inflatable life jackets and related life-jacket inflation systems.
Yes, when the life jacket or inflation system is designed for a compatible 24g CO₂ cartridge with a 1/2-20UNF threaded connection.
CO₂ capacity, cartridge dimensions and thread specification should all be confirmed against the equipment requirements.
No. Fairdale's 24g 1/2-20UNF life-jacket cartridge is a single-use product.
After the cartridge has been activated or discharged, it should be replaced according to the requirements of the compatible inflation system.
The documented standard specifications are:
Both Fairdale's standard 24g and 33g life-jacket cartridges use a 1/2-20UNF thread, but they differ in CO₂ capacity, dimensions and total cartridge weight.
The correct cartridge should be selected according to the specification required by the compatible inflation system.
Not automatically. Although both standard life-jacket versions use a 1/2-20UNF thread, their CO₂ capacities and overall cartridge dimensions are different.
Follow the cartridge specification required by the intended inflation system rather than choosing a cartridge based only on thread type.
Fairdale's standard minimum order quantity for 24g CO₂ cartridge projects is 50,000 PCS.
Buyers can provide the expected quantity together with application and packaging requirements when requesting a quotation.
Yes. Fairdale supplies 24g CO₂ cartridges for commercial sourcing, distribution and OEM projects.
The standard MOQ is 50,000 PCS.
Fairdale accepts customization requirements across its miniature CO₂ cartridge range.
Buyers can submit their application, cartridge specification, quantity, packaging requirements and destination market for commercial evaluation.
Packaging and branding requirements can be submitted as part of an OEM project for evaluation.
Buyers should provide the required packaging specification, artwork or branding requirements, expected order quantity and destination market when requesting a quotation.
No universal compatibility should be assumed.
The intended life jacket or inflation system should specify the required CO₂ capacity, cartridge dimensions and thread type. Fairdale's standard 24g version uses a 1/2-20UNF thread.
For faster project evaluation, please provide:
Send us your life-jacket inflation-system specification, required quantity and packaging needs for project evaluation.
